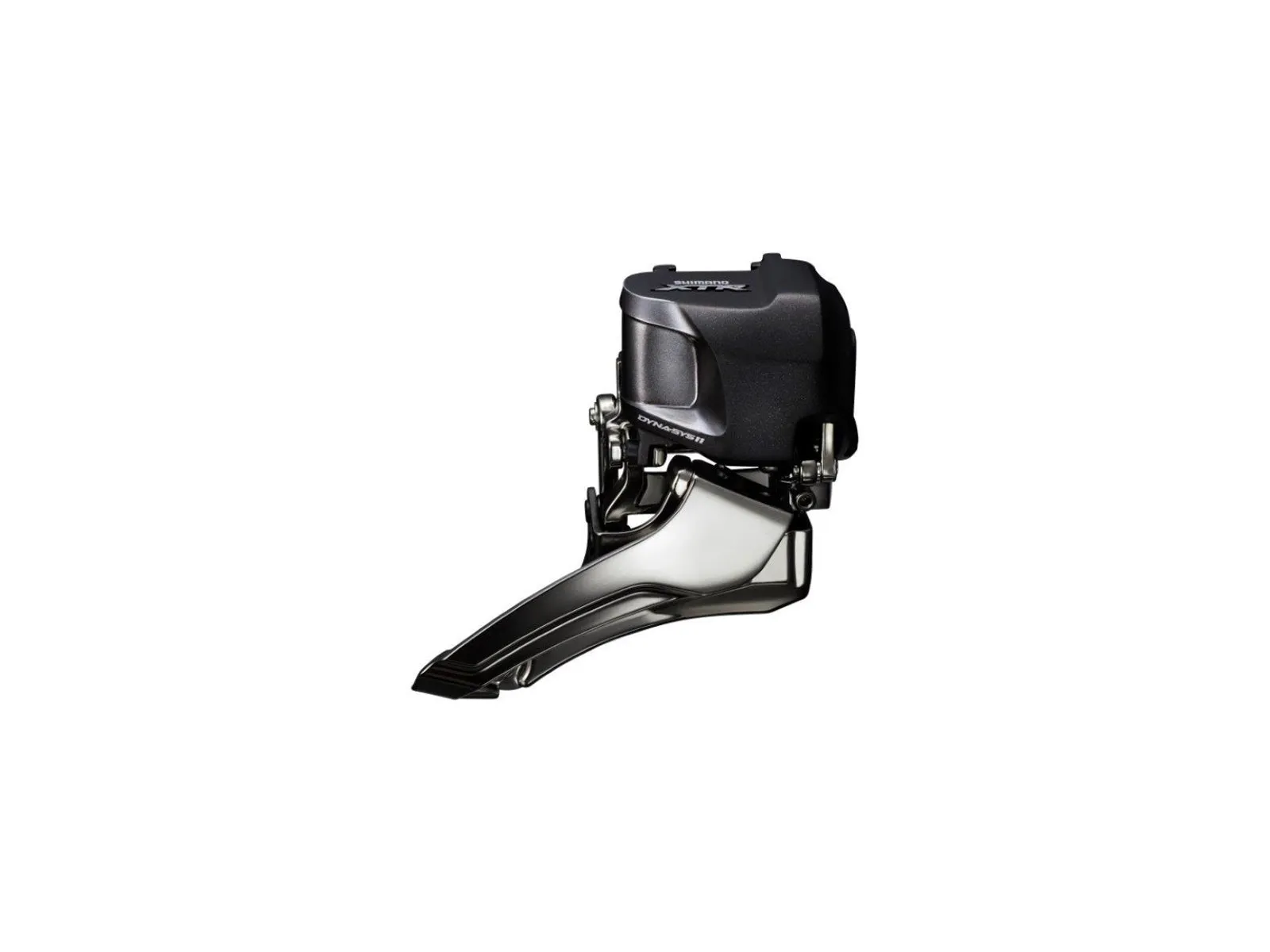

Shimano XTR Di2 FD-M9050 3 x 11 Down Swing Front Derailleur
This electronic front derailleur is Shimano's best electronic front derailleur for 3 x 11 gears, which must be mounted using a clamp around the bicycle's seat tube. The clamp is not included, but can be purchased with a diameter of 28.6 - 31.8 or 34.9 mm. Shimano has manufactured the front derailleur with a Down Swing shifting function, which means that the gear shifting movement is lower than the mounting bracket itself.
- Use: The front derailleur is intended for MTB bikes with a gear combination of 3 x 11 gears (3 front chainrings and 11-speed cassette in the rear). This is a front derailleur of absolute top quality, making it ideal for competitions and other demanding conditions. The largest chainring must have a maximum of 40 teeth for this front derailleur to function properly.
- Mounting: You must mount the front derailleur using a clamp or bracket depending on the frame type. The clamp is not included with the front derailleur, but can of course be purchased separately. You will need a 4 mm Allen key to mount the front derailleur and the tightening torque should be 5 - 7 Nm. We recommend that you use Shimano's mounting instructions when mounting the front derailleur. The mounting instructions can be found under the barcode at the bottom of the text.
- Safety and quality: This efficient, electronic front derailleur is for use on mountain bikes with 3 x 11 gears. The FD-M9050 front derailleur is part of the XTR group, which is Shimano's best component group within their mountain bike components. If you only want to ride with the best of the best gear, then this electronic front derailleur could be the right choice for you. The shifting function is precise and stable in all conditions, even under heavy load.
- Maintenance: The front derailleur requires minimal maintenance, but we recommend that you keep the front derailleur clean so that the shifting function can be carried out smoothly. You can lubricate the movable link bushes with a little oil. It will be an advantage to clean and lubricate after each training or competition.
Specifications
- Shimano XTR front derailleur type FD-M9050
- Model year: 2016
- Function: 3 x 11 gears
- Switching function: Down Swing
- Mounting type: All types. For seat tube and fixed with clamp. For direct or bottom bracket with mounting bracket
- Clamps or brackets for mounting are
- Chainline: 50 mm
- Largest front chainring must have a maximum of 40 teeth
- Total capacity of maximum 18 teeth, which is the difference in the number of teeth between the largest chainring and the smallest chainring on the crankset.
- Maximum tooth difference between the middle and largest chainring must not exceed 10 teeth (e.g. if the middle chainring has 30 teeth, the largest chainring must have a maximum of 40 teeth)
- The angle of the chainstay in relation to the seat tube should be 66-69 0
- 7 link bushings
- Chain guide: Steel
- Weight: 125 grams
- Color: Black/Silver
