This unit is purchased as a special order and is typically not in stock at our store.
Lead time is approximately 2 weeks, pending availability with SRM Oceania.

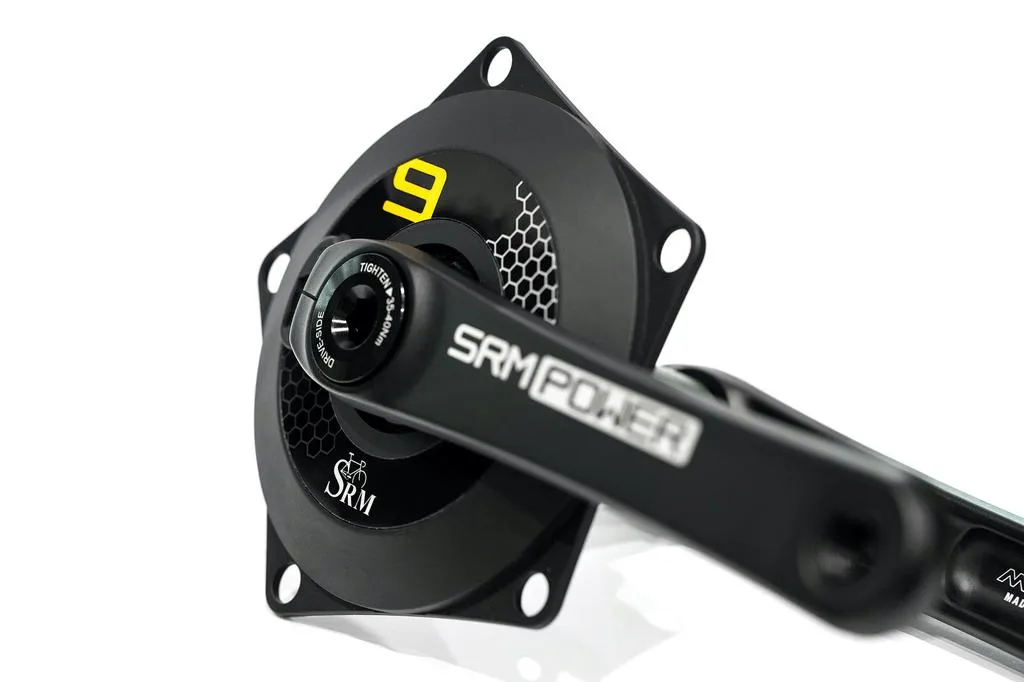

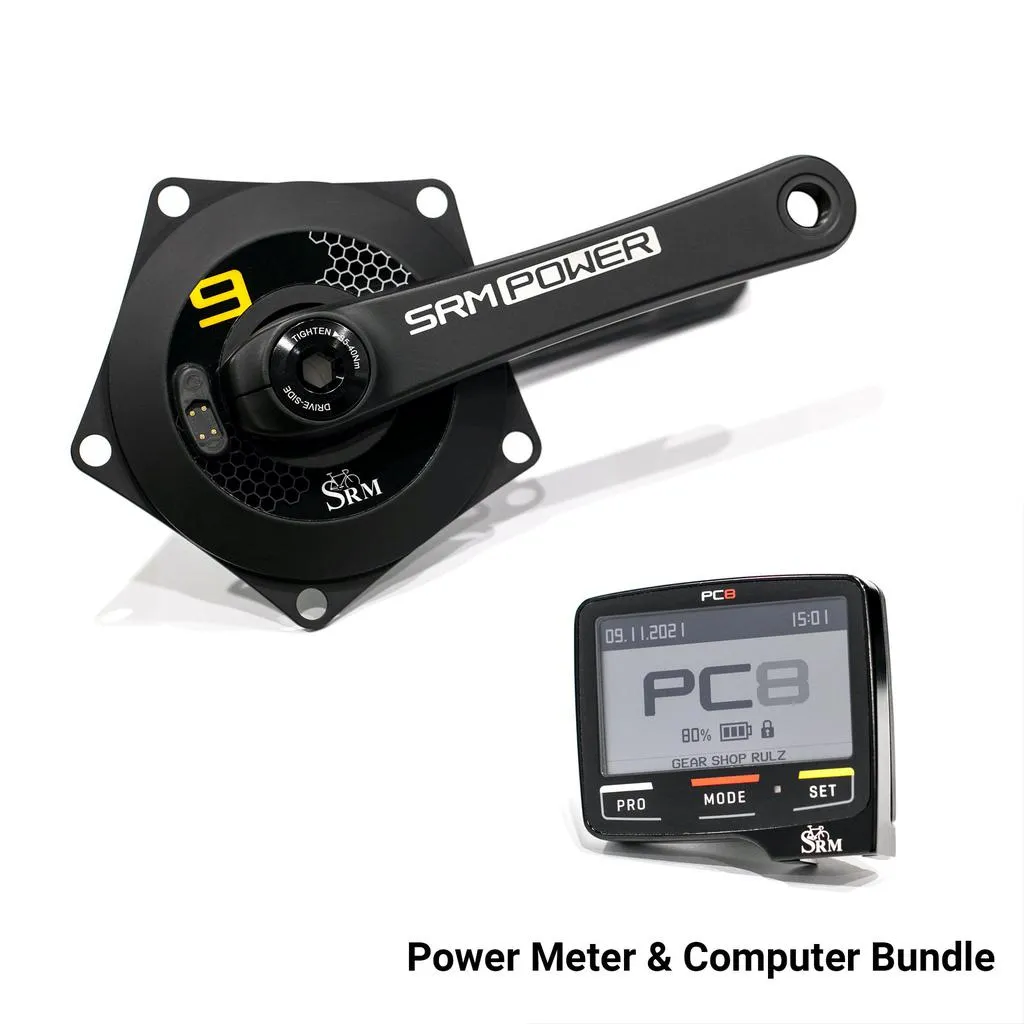

SRM PM9 Power Meter
The SRM Origin PowerMeter, named for having all components designed by SRM – the original PowerMeter, is a modular-concept PowerMeter offering limitless compatibility with exchangeable spindles and cranks, designed to fit any Track bike.

Spindles, Cranks and Chainrings can be configured to suit your particular needs. If your needs change over time they can easily be changed or upgraded.

SRM Origin can grow with you and will be with you for many years to come!

The SRM Origin Track Aluminium is the newest member in the Origin family. With its lower price compared to its carbon brothers, it gives you the opportunity to ride the best PowerMeter on the market with a lower investment.

Starting at a length of 160mm, the Aluminium cranks are the best option for small athletes.

SPECIFICATIONS
Accuracy: ±2%
Bolt Circle Diameter: 144 mm/5 bolts
Spindle: 24mm Steel
Connection: ANT
Q-Factor: 145.5mm
Runtime: Approx. 1400h ride time (battery, one year shelf time accounts for 500h ride time), >100h (rechargeable)
Weight: 761g (167.5mm)

OPTIONS
Crank Length: 160mm, 165mm, 167.5mm, 170mm, 172.5mm, 175mm

NOTES
This unit does not include a bottom bracket or Chainring Bolts
We recommend the following options;

Bottom Brackets
Please Contact us for 24mm Bottom Bracket Options.

Chainring Bolts





SRM PC8 Power Control Unit
With the PC8 SRM offers a device that is focused entirely on the needs of athletes, and foregoes gimmicks. In addition to common values such as power, heart rate, speed, etc. – the Training Peaks metrics such TSS® (Training Stress Score®), NP® (Normalised Power®) and IF® (Intensity Factor®) are calculated, and the values are displayed.  Also, location and content of the various data fields on the display is configurable.

Of course, the PC8 also has GPS (for recording) and is controlled by a light sensor backlight. The light as well as the GPS can be turned off in order to prolong battery life, which is between 10 and 45 hours.

The memory capacity is 500 MB, which can store data up to 4,000 hours of training. A built-in motion sensor turns the PC8 on automatically when riding.

Since many riders have several bikes with power meters, the PC8 supports up to four different bicycle profiles.  Selecting the profile for the respective bike prior to departure eliminates the previously required pairing with the power meter.

The SRM PC8 displays up to 7 training zones based on your previously recorded heart rate or power data and automatically calculates your FTP.

The shell is made of anodised aluminium, which is available in three different colours: red, black and titanium, and can be personalised with custom anodising. For other colours please contact us for more information on lead time. You can select your “Custom Anodised” and advise in the notes of the colour your would like in the checkout notes.

Charging and data transfer is accomplished using a magnetic plug. Training data is stored as a .fit™ file and can be analysed using popular training software tools such as Golden Cheetah, Strava, and Training Peaks.

Data from power meter, speed sensor and heart rate monitor strap is received via the ANT protocol.  The PC8 is compatible with all power meters that support ANT .

This unit is supplied by default with a 31.8mm handlebar mount and the standard 30cm charge cable.
Should you require a 35mm mount, or a longer cable, please leave notes in the checkout and we will custom order your unit to suit.

SPECIFICATIONS
Connection: ANT , Bluetooth
GPS: Yes
Sensors: Barometric altimeter, Light sensor, Motion Sensor
Display: Auto backlight, User-configurable display
Memory: 4000 hours
Runtime: 10 – 45 hours (Depending on activated features)
Standby Time: 3 weeks
Weight: 93g
Top Case: 6061 Aluminium
Dimensions: Width - 71mm, Height - 63 mm, Depth - 20 mm
Software: Android, IOS, MAC, Windows (Firmware Update Available via Bluetooth and via PC/Mac)
Warranty: 2 Years
Included: PC8, USB Cable, Handlebar Mount, ANT Heart Rate Strap (optional), ANT Speed Sensor (optional)
Colour: Black
